Heipac VARIO 192HP front rail with 10mm extensions anodised


  • Heipac VARIO 192HP front rail with 10mm extensions anodised

Components / accessories

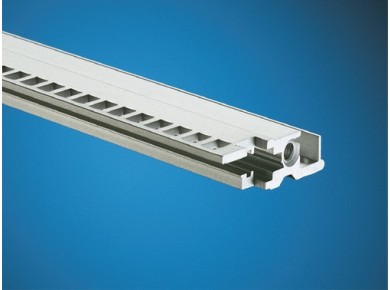

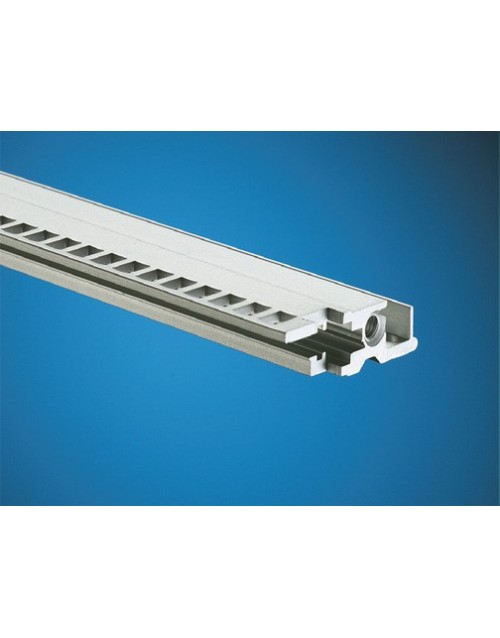

Front horizontal rail, with 10 mm extension

For type IV, IVs and VII injector/extractor handle
To accommodate guide rails and for the attachment of front panels.
• Front projection and pitch pattern of holes based on IEEE 1101.10 and IEC 60 297-3-101
• HP pitch pattern of holes for the precise installation of guide rails
• M4 thread on end face
• Straight-through core hole
• Horizontal rail 192 HP without machining on the end faces. Suitable for cutting to length
Material: Extruded aluminium section
Surface finish: Clear-chromated or anodised

Write a review

Note: HTML is not translated!
    Bad           Good
  • £25.07

  • Inc VAT:  £30.08

  • Product Code: 3688001
  • Availability: 7-10 working days
