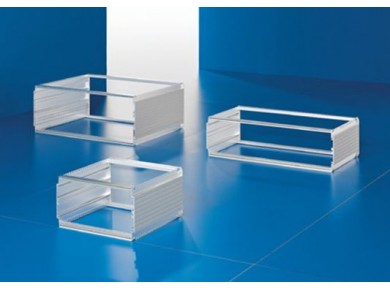

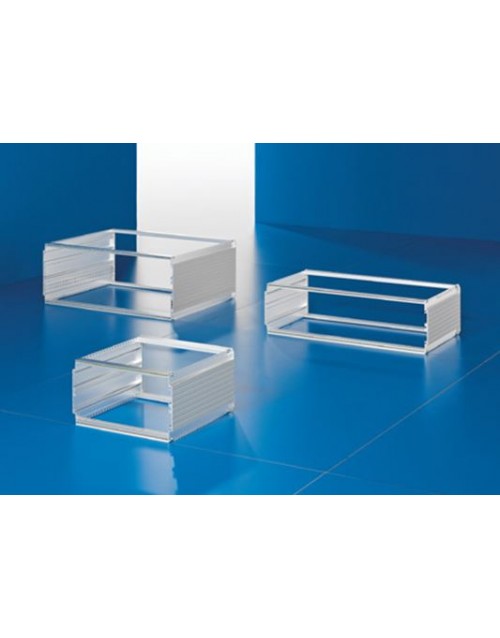

3U x 63HP x 310.4mm HeiPac VM Standard


  • 3U x 63HP x 310.4mm HeiPac VM Standard

HEIpac instrument cases / system enclosures

HEIpac Vario-Module 3 U

Technical specifications:

May be used as a rack-mount enclosure or instrument case. External dimensions to IEC 60 297-1 for installation in 482.6 mm (19˝) racks. Installation dimensions for board type plug-in assemblies to IEC 60 297-3-101.

Material/Surface finish:

Side panels: Extruded aluminium section, spray finished in RAL 7035
Horizontal rails: Extruded aluminium section, clear-chromated
Corner trims: Die-cast zinc, spray-finished in RAL 7035
Side trims: Extruded aluminium section, spray-finished in RAL 7035


Protection category:

IP 40 for non-vented version.
Supply includes:
2 side panels
4 horizontal rails
4 threaded inserts
2 corner trims
assembly parts
o Equipped as an instrument case
o Equipped as a rack-mount unit

Note:

Corner trims, mounting flanges and top and bottom covers must be ordered separately.

Write a review

Note: HTML is not translated!
    Bad           Good
  • £81.13

  • Inc VAT:  £97.36

  • Product Code: 3982080
  • Availability: 7-10 working days
