3U x 42HP x 310.4mm HeiPac VM Standard


  • 3U x 42HP x 310.4mm HeiPac VM Standard

HEIpac instrument cases / system enclosures

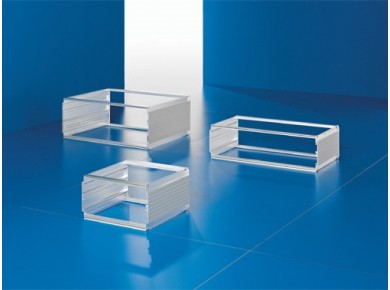

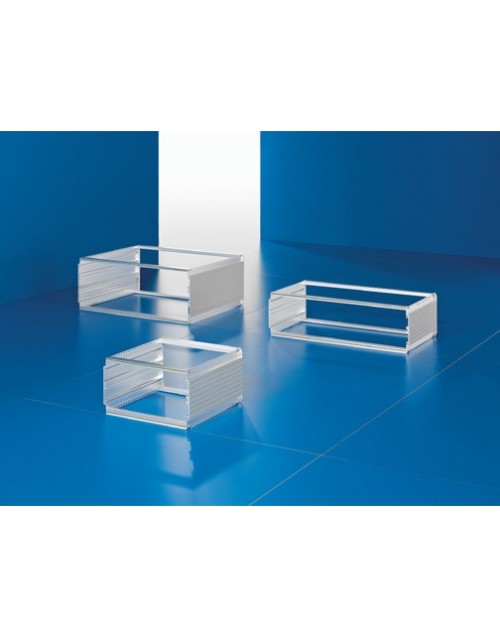

HEIpac Vario-Module 3 U

Technical specifications:
May be used as a rack-mount enclosure or instrument case. External dimensions to IEC 60 297-1 for installation in 482.6 mm (19˝) racks. Installation dimensions for board type plug-in assemblies to IEC 60 297-3-101.

Material/Surface finish:
• Side panels: Extruded aluminium section, spray finished in RAL 7035
• Horizontal rails: Extruded aluminium section, clear-chromated
• Corner trims: Die-cast zinc, spray-finished in RAL 7035
• Side trims: Extruded aluminium section, spray-finished in RAL 7035

Protection category:
IP 40 for non-vented version.
Supply includes:
• 2 side panels
• 4 horizontal rails
• 4 threaded inserts
• 2 corner trims
• assembly parts
o Equipped as an instrument case
o Equipped as a rack-mount unit
Note:
Corner trims, mounting flanges and top and bottom covers must be ordered separately.

Write a review

Note: HTML is not translated!
    Bad           Good
  • £80.06

  • Inc VAT:  £96.07

  • Product Code: 3982070
  • Availability: 7-10 working days
